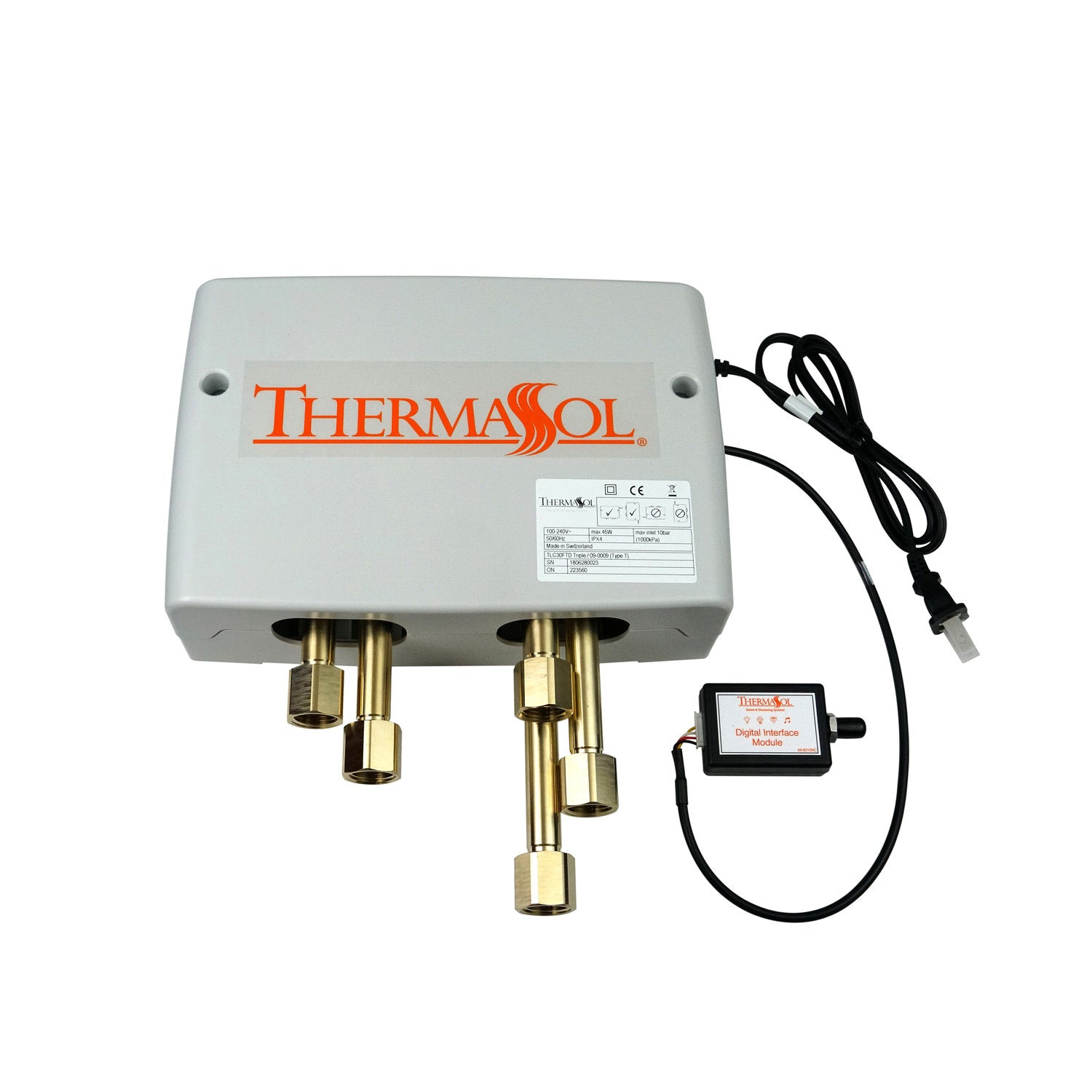

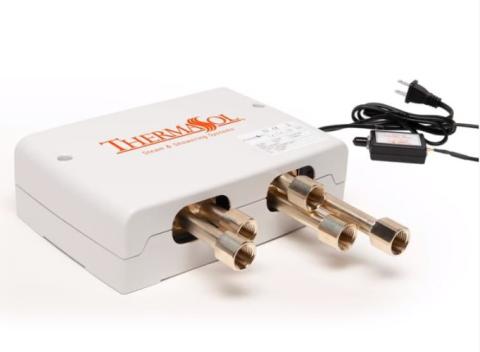

ThermaSol Digital Shower Valve
The ThermaSol Smart Digital Shower Valve allows the ultimate in precision control of water volume and temperature.

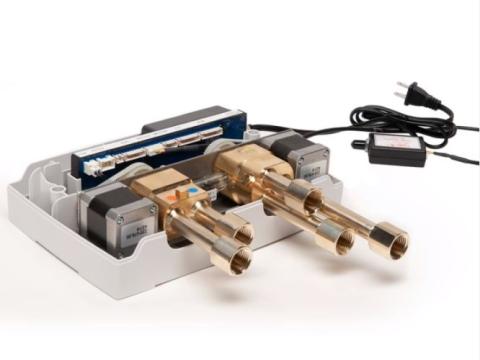

The advanced valve utilizes best in-class, ceramic disc Fluhs brass cartridges and two laboratory grade stepper motors - allowing 400 positions to deliver precise incremental settings.
The ThermaSol Smart Digital Shower Valve allows installation flexibility up to 30 feet from the shower structure and has an integrated diverter so that the user can select different showering outlets.
Whether matched with ThermaSol’s quality shower products or other manufacturers, the Smart Digital Shower Valve is managed by one of ThermaSol’s intuitive smart touchscreen controls.
- Precise temperature control
- Precise water volume control
- Eliminates exposed valves and trims
- Ceramic disc Fluhs
- 2 industrial grade stepper motors
- Solenoid valve systems
- Integrated diverter
- Three output valve
- IAPMO approved
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 11"W x 3"D x 7"H
- 5 year warranty
- Digital Shower Valve
- Screw set
- Connection nipple set
- CAN-bus cable 50ft'
- Digital interface
- Back up battery
- Installation manual
- Warranty
| Model | Digital Shower Valve |
|---|---|
| 2 Inputs | 1/2" FNPT |
| 3 Outputs | 1/2" FNPT |
| Power Supply | |
| Input | 11VAC, 0.5 Amps |
| Output | 15VDC, 3 Amps required |
| Shipping Weight | 10.65 lbs |
| Width | 11" |
| Depth | 3" |
| Height | 7" |
